Electrical · E-NMTZA

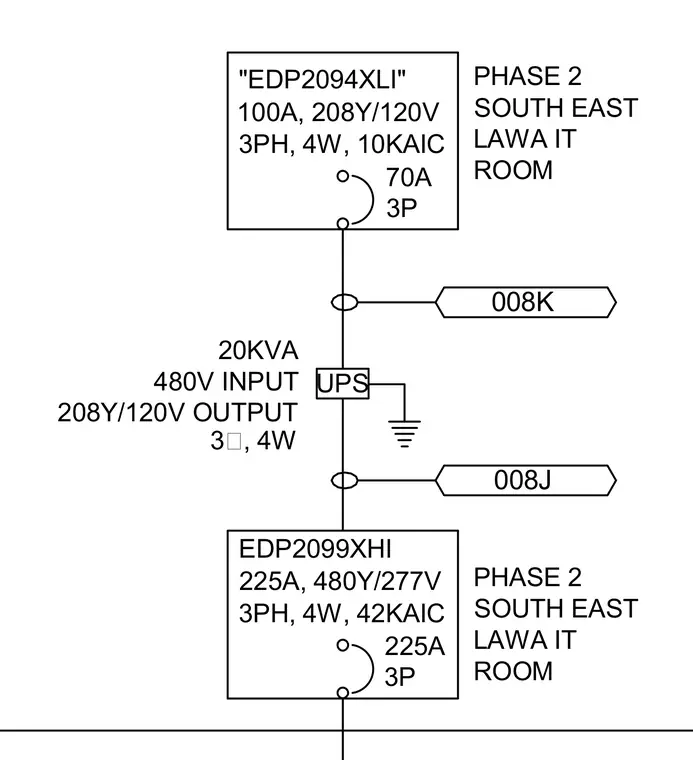

UPS and Distribution Panel Riser Diagram

About this detail

An uninterruptible power supply rated at 20kVA with a 480V input and 208Y/120V output serves as the central node. It connects downstream to a 100A 208Y/120V 3-phase 4-wire panel designated EDP2094XLI with a 70A 3-pole breaker. Upstream connection feeds a 225A 480Y/277V 3-phase 4-wire panel designated EDP2099XHI with a 225A 3-pole breaker. Equipment ground is connected directly to earth ground.
