A grounding cable is connected to a structural steel column or flat steel member using a Cadweld type VB tap. The exothermic connection secures the cable directly to the vertical face of the steel member.

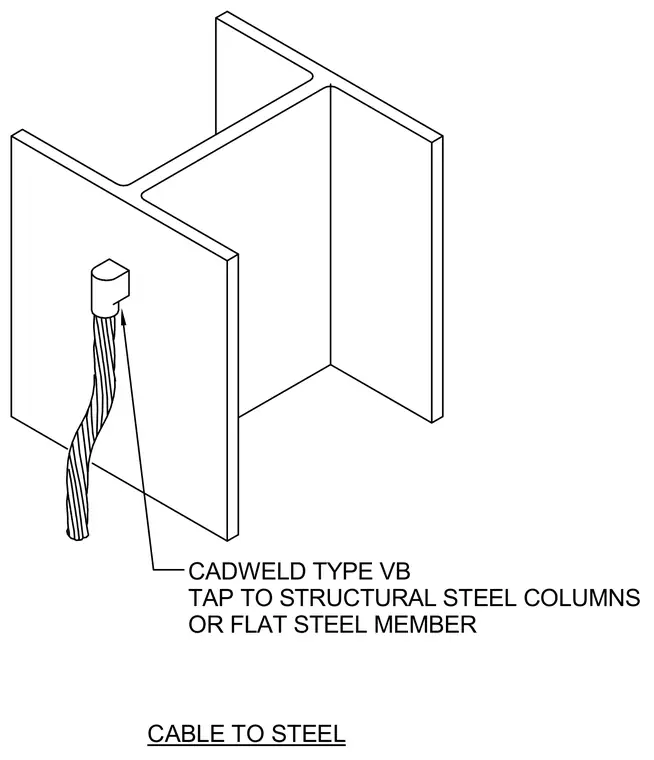

CADWELD TYPE VB TAP TO STRUCTURAL STEEL COLUMNS OR FLAT STEEL MEMBER CABLE TO STEEL
