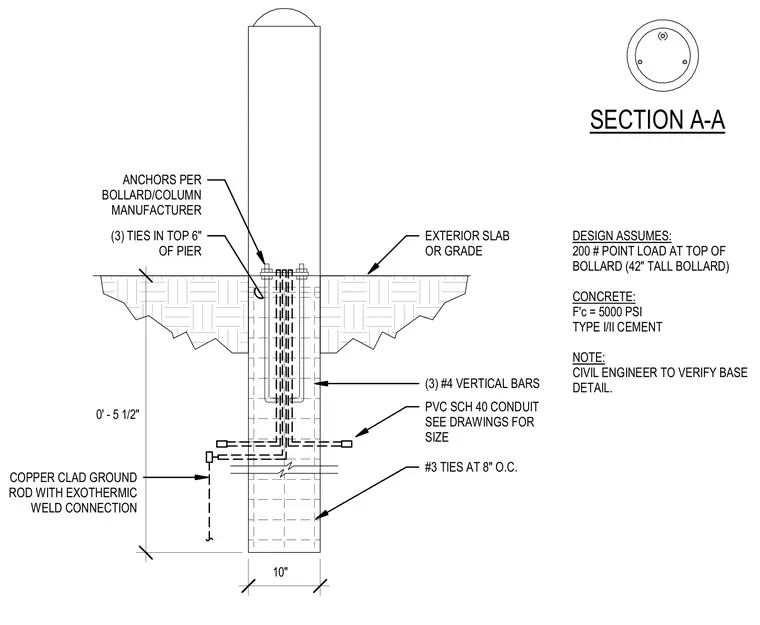

A forty-two inch tall light bollard is anchored to a ten inch diameter concrete pier utilizing anchor bolts provided by the manufacturer. The concrete pier features a compressive strength of five thousand psi with Type I/II cement, reinforced with three number four vertical bars and number three ties spaced at eight inches on center, along with three ties in the top six inches. A PVC schedule forty conduit passes through the pier for electrical supply, sized per drawings. A copper-clad ground rod is connected via an exothermic weld connection near the base. The design assumes a two-hundred pound point load at the top of the bollard, and exterior slab or grade surrounds the upper pier.
DESIGN ASSUMES: 200 # POINT LOAD AT TOP OF BOLLARD (42" TALL BOLLARD) CONCRETE: F'c = 5000 PSI TYPE I/II CEMENT NOTE: CIVIL ENGINEER TO VERIFY BASE DETAIL. SECTION A-A ANCHORS PER BOLLARD/COLUMN MANUFACTURER (3) TIES IN TOP 6" OF PIER EXTERIOR SLAB OR GRADE PVC SCH 40 CONDUIT SEE DRAWINGS FOR SIZE (3) #4 VERTICAL BARS #3 TIES AT 8" O.C. 10" 0' - 5 1/2" COPPER CLAD GROUND ROD WITH EXOTHERMIC WELD CONNECTION
