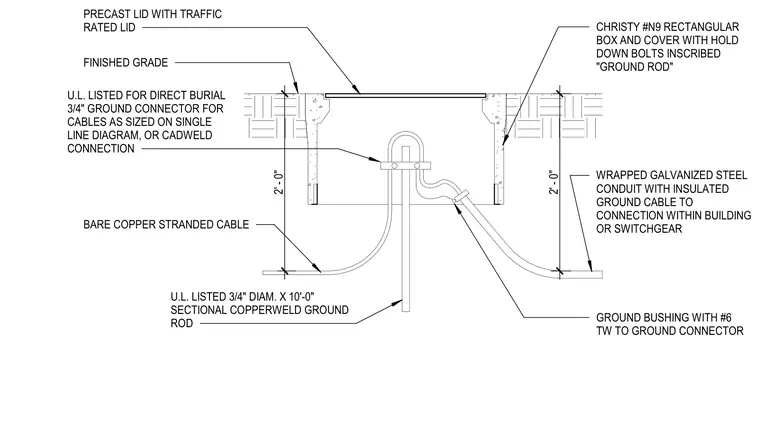

A ground inspection well is set flush with finished grade, utilizing a Christy N9 rectangular box and cover with hold-down bolts inscribed 'GROUND ROD'. A three-quarter-inch diameter by ten-foot sectional copperweld ground rod is driven into the earth below, connecting to bare copper stranded cable via a UL-listed ground connector or Cadweld connection. A wrapped galvanized steel conduit enters the box, housing an insulated ground cable that routes to a connection within the building or switchgear. A ground bushing with number six TW wire links to the ground connector.
2' - 0" 2' - 0" CHRISTY #N9 RECTANGULAR BOX AND COVER WITH HOLD DOWN BOLTS INSCRIBED "GROUND ROD" WRAPPED GALVANIZED STEEL CONDUIT WITH INSULATED GROUND CABLE TO CONNECTION WITHIN BUILDING OR SWITCHGEAR GROUND BUSHING WITH #6 TW TO GROUND CONNECTOR PRECAST LID WITH TRAFFIC RATED LID FINISHED GRADE U.L. LISTED FOR DIRECT BURIAL 3/4" GROUND CONNECTOR FOR CABLES AS SIZED ON SINGLE LINE DIAGRAM, OR CADWELD CONNECTION BARE COPPER STRANDED CABLE U.L. LISTED 3/4" DIAM. X 10'-0" SECTIONAL COPPERWELD GROUND ROD
