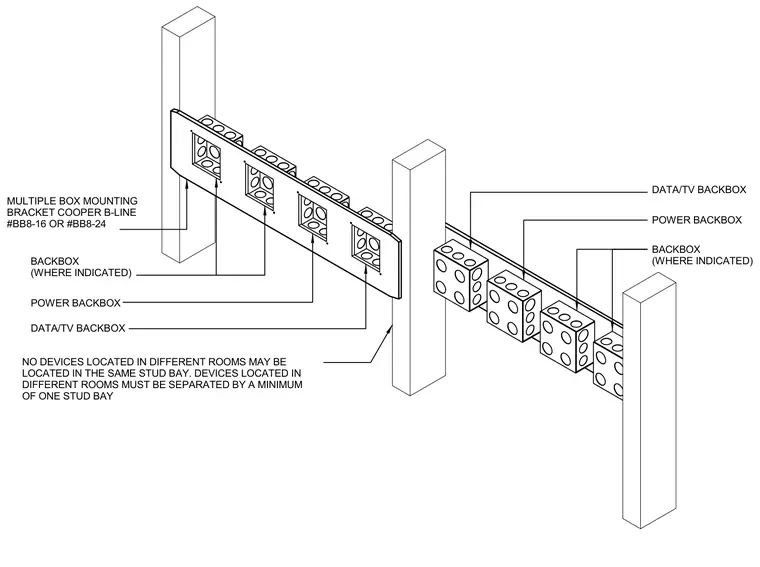

Power and data electrical backboxes mount to a Cooper B-Line multiple box mounting bracket spanning between wood or metal studs. Devices located in different rooms require separation by a minimum of one stud bay to maintain acoustic and fire separation.
POWER BACKBOX DATA/TV BACKBOX DATA/TV BACKBOX POWER BACKBOX BACKBOX (WHERE INDICATED) MULTIPLE BOX MOUNTING BRACKET COOPER B-LINE #BB8-16 OR #BB8-24 NO DEVICES LOCATED IN DIFFERENT ROOMS MAY BE LOCATED IN THE SAME STUD BAY. DEVICES LOCATED IN DIFFERENT ROOMS MUST BE SEPARATED BY A MINIMUM OF ONE STUD BAY BACKBOX (WHERE INDICATED)
