Structural · E-NEE2Z

Bolted Beam to Beam Framing Connection Detail

Materials

Steel

Elements

Beams Connections / Plates

Connections

Beam-to-Beam Welded Connection Bolted Connection

About this detail

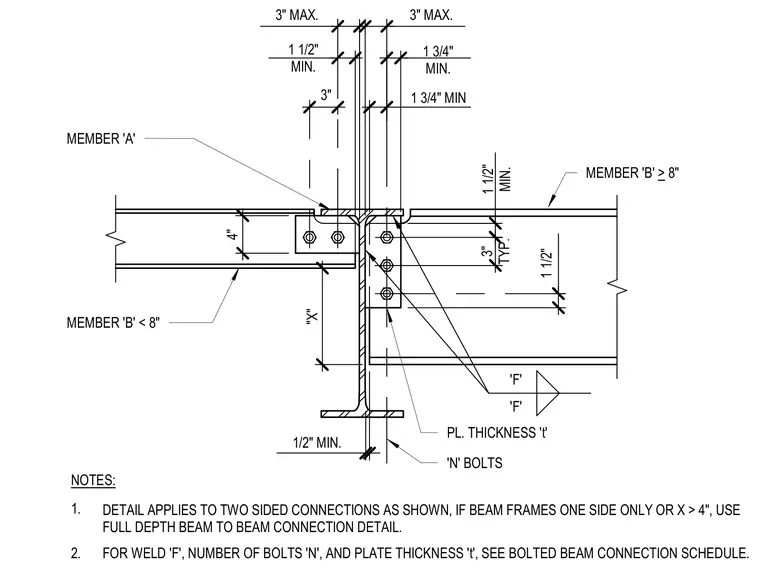

Two framing structural steel beams connect to a primary supporting member utilizing bolted connection plates. Member A acts as the main support while Member B frames into it from two sides with bolted web connections and specific weld sizes. Dimension callouts detail edge distances, minimum spacing clearances, and offset dimensions. Weld size F, number of bolts N, and plate thickness t are referenced to a bolted beam connection schedule. Notes specify that this detail applies to two-sided connections where dimension X is less than or equal to 4 inches, while one-sided or larger offsets require a full-depth connection detail.
