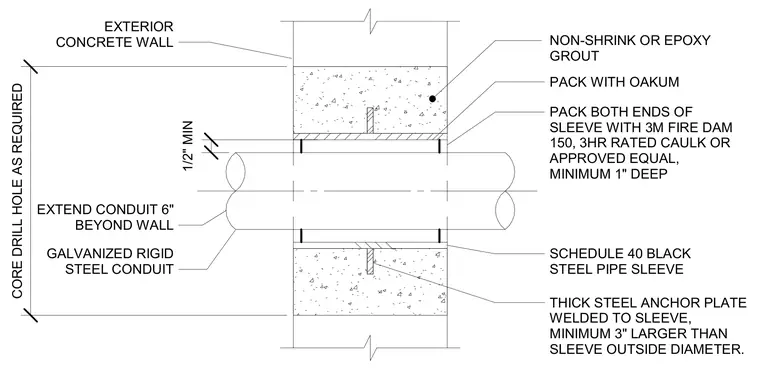

A galvanized rigid steel conduit penetrates an exterior concrete wall through a Schedule 40 black steel pipe sleeve with a core-drilled hole sized as required. A thick steel anchor plate is welded to the sleeve and extends a minimum of three inches larger than the sleeve outside diameter into non-shrink or epoxy grout. The annular space is packed with oakum, and both ends of the sleeve are sealed with a minimum one-inch depth of 3M Fire Dam 150 three-hour rated caulk or approved equal. The conduit extends six inches beyond the wall face.
EXTERIOR CONCRETE WALL GALVANIZED RIGID STEEL CONDUIT THICK STEEL ANCHOR PLATE WELDED TO SLEEVE, MINIMUM 3" LARGER THAN SLEEVE OUTSIDE DIAMETER. 1/2" MIN EXTEND CONDUIT 6" BEYOND WALL SCHEDULE 40 BLACK STEEL PIPE SLEEVE CORE DRILL HOLE AS REQUIRED PACK BOTH ENDS OF SLEEVE WITH 3M FIRE DAM 150, 3HR RATED CAULK OR APPROVED EQUAL, MINIMUM 1" DEEP PACK WITH OAKUM NON-SHRINK OR EPOXY GROUT
