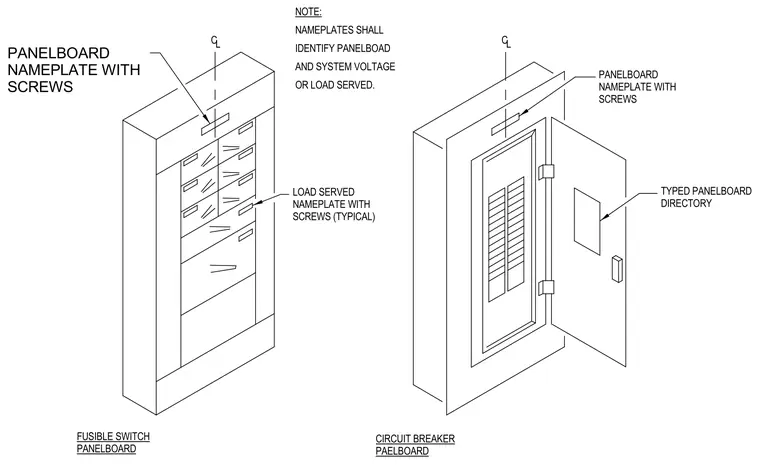

Panelboard nameplates are secured with screws to identify the panelboard, system voltage, and load served. Individual load served nameplates are mounted typically across the panel assembly. A typed panelboard directory is positioned on the inside of the enclosure door for circuit breaker panels.
PANELBOARD NAMEPLATE WITH SCREWS NOTE: NAMEPLATES SHALL IDENTIFY PANELBOAD AND SYSTEM VOLTAGE OR LOAD SERVED. LOAD SERVED NAMEPLATE WITH SCREWS (TYPICAL) PANELBOARD NAMEPLATE WITH SCREWS TYPED PANELBOARD DIRECTORY CIRCUIT BREAKER PAELBOARD FUSIBLE SWITCH PANELBOARD CL CL
