A transformer base measuring up to 30 inches wide by 24 inches deep by 37 inches high with a maximum weight of 870 pounds is mounted on a concrete equipment pad at least 4 inches thick. The unit is secured at each corner using one half-inch diameter Hildi stainless steel KB-TZ anchor with 3 and one-half inches of embedment installed per ICC ESR-1917. The concrete equipment pad is constructed per structural detail 4D/S0.11 for interior conditions or 7/S1.01 for exterior conditions.

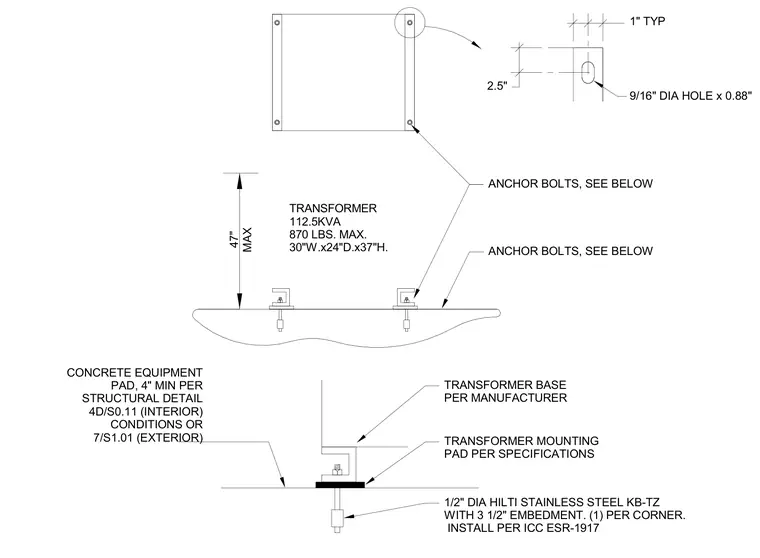

ANCHOR BOLTS, SEE BELOW ANCHOR BOLTS, SEE BELOW TRANSFORMER 112.5KVA 870 LBS. MAX. 30"W.x24"D.x37"H. TRANSFORMER BASE PER MANUFACTURER TRANSFORMER MOUNTING PAD PER SPECIFICATIONS 1/2" DIA HILTI STAINLESS STEEL KB-TZ WITH 3 1/2" EMBEDMENT. (1) PER CORNER. INSTALL PER ICC ESR-1917 2.5" 1" TYP 9/16" DIA HOLE x 0.88" CONCRETE EQUIPMENT PAD, 4" MIN PER STRUCTURAL DETAIL 4D/S0.11 (INTERIOR) CONDITIONS OR 7/S1.01 (EXTERIOR) 47" MAX
