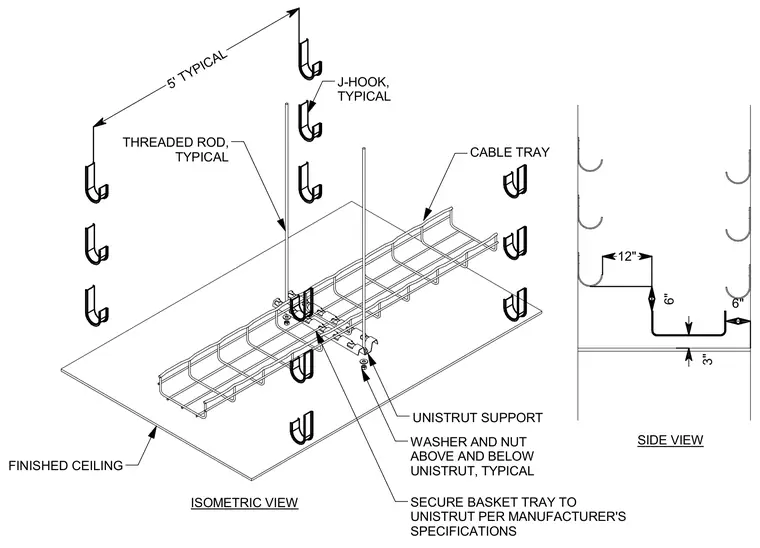

A wire basket cable tray is supported by Unistrut channels suspended from threaded rods anchored above the finished ceiling. Washers and nuts are secured above and below the Unistrut support at a typical spacing. Additional cable support is provided by J-hooks spaced at typical intervals along the suspension runs. The basket tray is fastened directly to the Unistrut support per the manufacturer specifications.
3" 12" 6" 5' TYPICAL 6" ISOMETRIC VIEW SIDE VIEW CABLE TRAY UNISTRUT SUPPORT THREADED ROD, TYPICAL FINISHED CEILING WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL J-HOOK, TYPICAL SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS
