Electrical · E-N6MZ2

Cable Bus Cross Section Configuration

Materials

Elements

About this detail

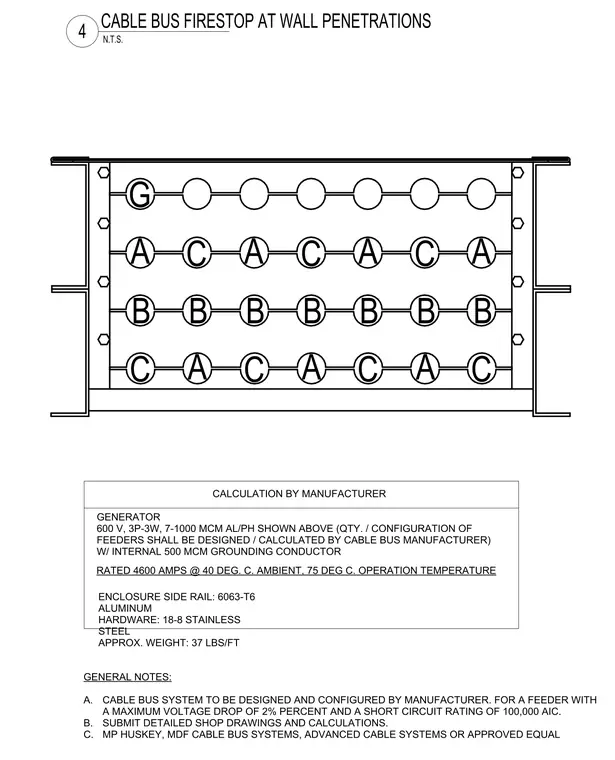

A cable bus system cross-section configuration features 600-volt, 3-phase, 3-wire aluminum phase conductors and an internal 500 kcmil grounding conductor rated at 4600 amps. The enclosure side rails are fabricated from 6063-T6 aluminum with 18-8 stainless steel hardware, carrying an approximate weight of 37 pounds per foot. The quantity and configuration of feeders are designed and calculated by the cable bus manufacturer to maintain a maximum voltage drop of 2 percent and a short circuit rating of 100,000 AIC. Detailed shop drawings and calculations must be submitted by approved manufacturers such as MP Huskey, MDF Cable Bus Systems, or Advanced Cable Systems.
