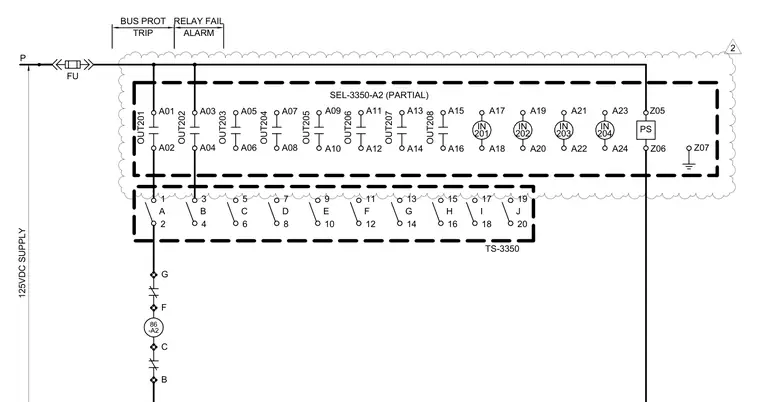

An electrical schematic diagram depicting a 125Vdc supply line feeding an SEL-3350-A2 partial controller module through a fuse protection device. The circuit routes power through multiple digital outputs, inputs, power supply connections, and a bus protection trip and relay failure alarm configuration.
C F B G 86 -A2 TS-3350 125VDC SUPPLY P TRIP BUS PROT RELAY FAIL ALARM A02 A01 OUT201 A04 A03 A06 A05 A08 A07 2 1 A 4 3 B 6 5 C 8 7 D 10 9 E 12 11 F 14 13 G 16 15 OUT202 OUT203 OUT204 18 17 I SEL-3350-A2 (PARTIAL) A10 A09 A12 A11 A14 A13 A16 A15 A18 A17 IN 201 A20 A19 IN 202 PS Z06 Z05 Z07 20 19 J FU H A22 A21 IN 203 A24 A23 IN 204 OUT205 OUT206 OUT207 OUT208 2
