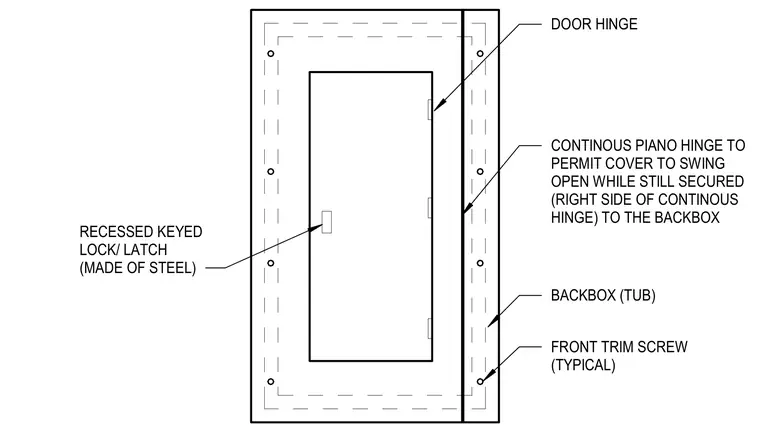

The panelboard cover is secured to the backbox tub using a continuous piano hinge along the right side, which permits the cover to swing open while remaining attached. A recessed keyed lock made of steel provides closure on the opposite side. Front trim screws are spaced typically around the perimeter to secure the trim to the backbox assembly.
RECESSED KEYED LOCK/ LATCH (MADE OF STEEL) DOOR HINGE CONTINOUS PIANO HINGE TO PERMIT COVER TO SWING OPEN WHILE STILL SECURED (RIGHT SIDE OF CONTINOUS HINGE) TO THE BACKBOX BACKBOX (TUB) FRONT TRIM SCREW (TYPICAL)
