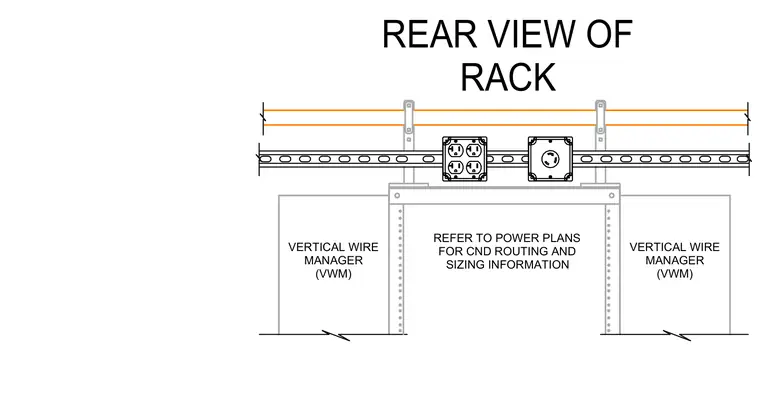

This elevation details the rear view of an equipment rack, indicating the placement of vertical wire managers on each side. Electrical outlets and junction boxes are mounted to horizontal strut channels across the top of the assembly. Conduit routing and sizing information must be coordinated per the power plans.
REAR VIEW OF RACK REFER TO POWER PLANS FOR CND ROUTING AND SIZING INFORMATION VERTICAL WIRE MANAGER (VWM) VERTICAL WIRE MANAGER (VWM)
