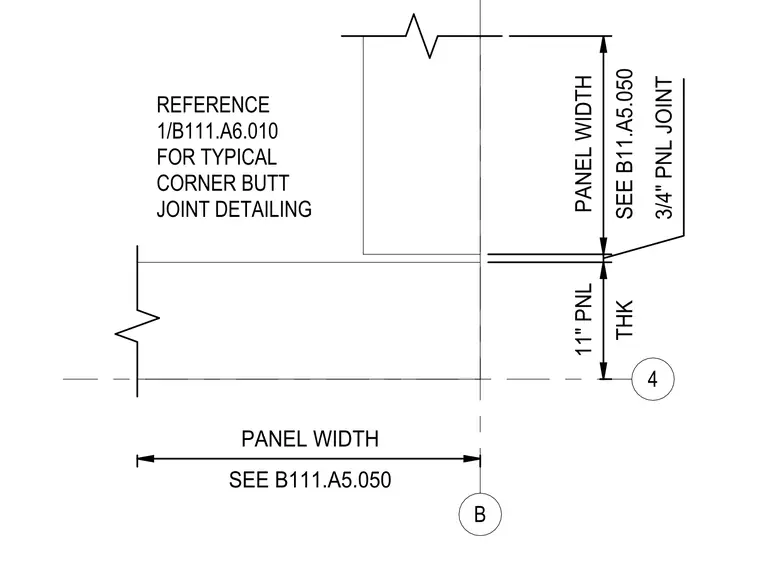

An eleven-inch thick panel joint assembly maintains a three-quarter-inch width between adjacent panels. Panel widths are referenced to drawing B11.A5.050. Typical corner butt joint detailing is referenced to drawing 1/B111.A6.010.
