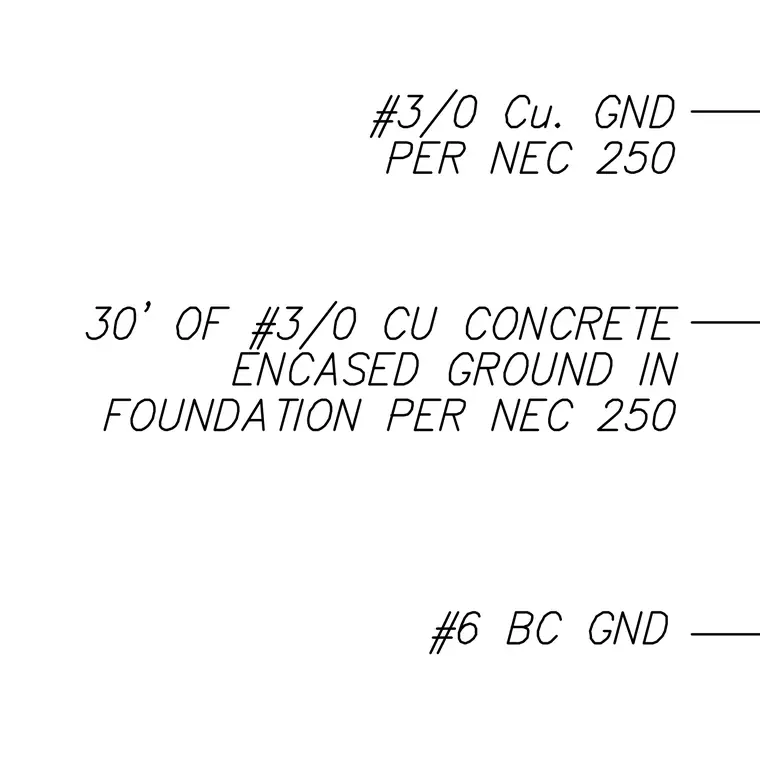

An electrical grounding detail specifying a number 3/0 copper ground conductor per National Electrical Code 250. Thirty feet of number 3/0 copper concrete-encased ground is provided in the foundation per National Electrical Code 250. A number 6 bare copper ground conductor completes the system.
