Wall-mounted light fixtures are installed at heights noted per the interior elevations or drawings above the finish floor. Pendant light fixtures hang from the ceiling with mounting heights as noted and maintain a minimum clearance of 18 inches. Pendant exit signs are mounted near doorways with maximum heights of 36 inches above the door frame.

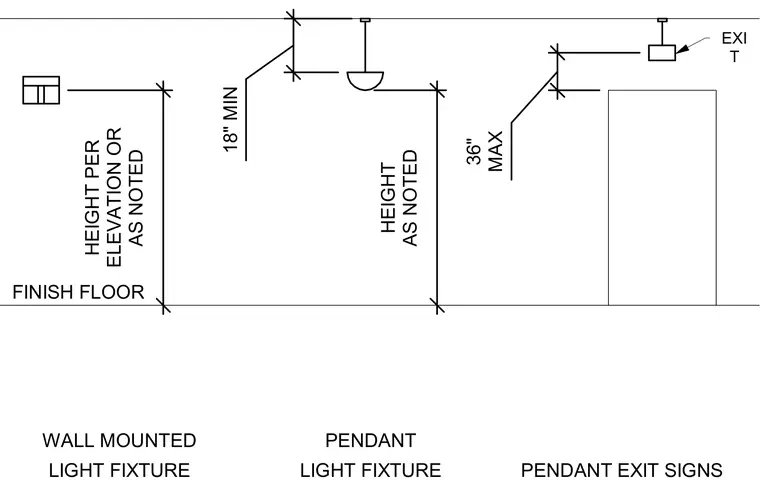

LIGHT FIXTURE PENDANT EXIT SIGNS EXI T FINISH FLOOR WALL MOUNTED PENDANT LIGHT FIXTURE HEIGHT AS NOTED HEIGHT PER ELEVATION OR AS NOTED 18" MIN 36" MAX
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
