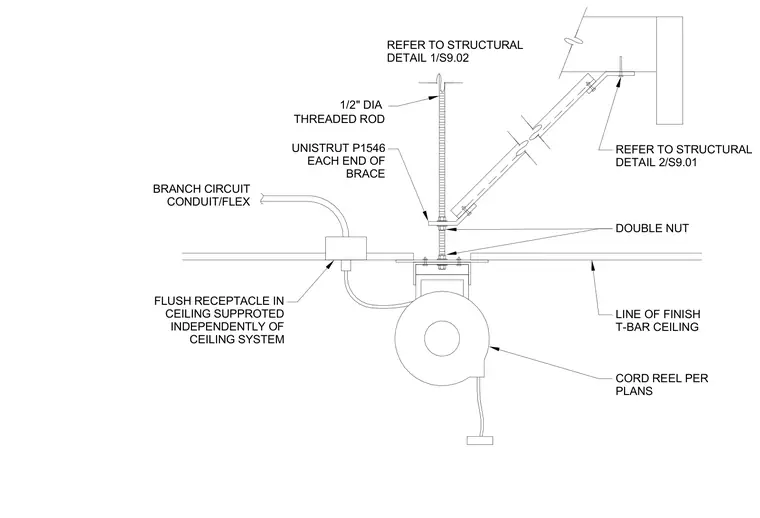

A ceiling-mounted cord reel is supported independently of the T-bar ceiling system using a vertical half-inch diameter threaded rod and a diagonal brace with Unistrut P1546 fittings at each end. Double nuts secure the vertical rod assembly above the line of the finish ceiling. A flush receptacle in the ceiling connects via branch circuit conduit or flexible conduit to the reel. The structural support ties back to overhead framing according to project structural details.
DOUBLE NUT LINE OF FINISH T-BAR CEILING CORD REEL PER PLANS REFER TO STRUCTURAL DETAIL 2/S9.01 1/2" DIA THREADED ROD UNISTRUT P1546 EACH END OF BRACE FLUSH RECEPTACLE IN CEILING SUPPROTED INDEPENDENTLY OF CEILING SYSTEM BRANCH CIRCUIT CONDUIT/FLEX REFER TO STRUCTURAL DETAIL 1/S9.02
