Position Box with 2 CAT 6A

Elements

Connections

About this detail

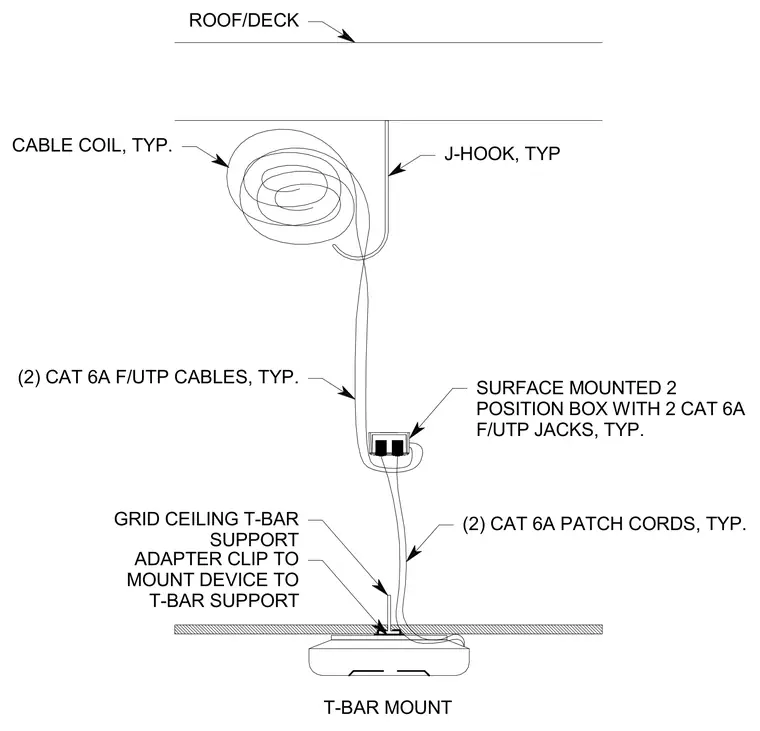

Two CAT 6A F/UTP cables drop from the roof deck and route through a J-hook with a typical cable coil above a surface-mounted two-position box containing two CAT 6A F/UTP jacks. Two CAT 6A patch cords extend downward from the box to a grid ceiling T-bar support adapter clip that mounts the device directly to the ceiling T-bar.
