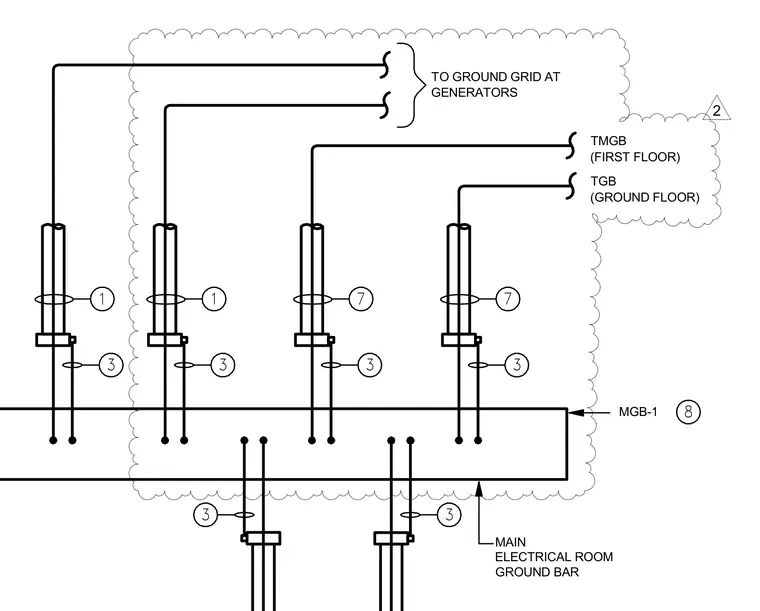

The main electrical room ground bar MGB-1 connects to the ground grid at the generators, the telecommunications master ground bar on the first floor, and the telecommunications ground bar on the ground floor. Conductors route through conduits connected to the grounding busbar.
3 8 3 1 3 7 3 7 3 1 3 MAIN ELECTRICAL ROOM GROUND BAR MGB-1 TO GROUND GRID AT GENERATORS TMGB (FIRST FLOOR) TGB (GROUND FLOOR) 2
