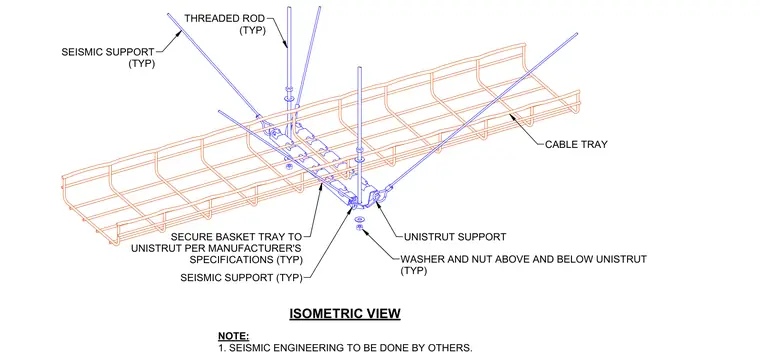

A wire basket cable tray is supported by vertical threaded rods and secured to Unistrut channel supports. Washers and nuts are installed above and below the Unistrut at typical locations. Diagonal seismic supports anchor the assembly against lateral loads. The basket tray is fastened to the Unistrut according to the manufacturer's specifications. Seismic engineering is provided by others.
ISOMETRIC VIEW CABLE TRAY THREADED ROD (TYP) UNISTRUT SUPPORT SEISMIC SUPPORT (TYP) SEISMIC SUPPORT (TYP) 1. NOTE: SEISMIC ENGINEERING TO BE DONE BY OTHERS. WASHER AND NUT ABOVE AND BELOW UNISTRUT (TYP) SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS (TYP)
