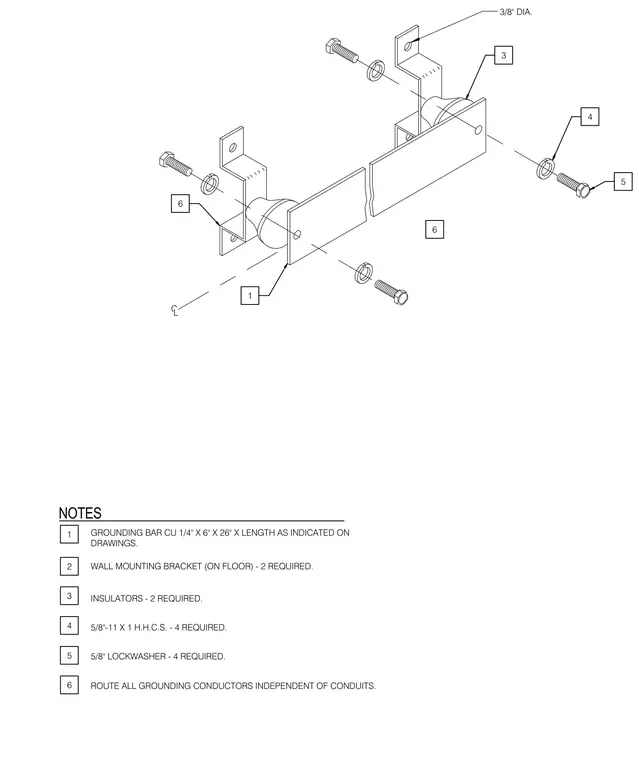

A copper grounding bar measuring one-quarter inch by six inches by twenty-six inches, with length as indicated on drawings. The bar is supported by two wall mounting brackets attached via two required insulators. Four five-eighths inch by one inch hex head cap screws and four five-eighths inch lockwashers secure the assembly. All grounding conductors must be routed independent of conduits.
3/8" DIA. 3 4 5 6 1 6 CL NOTES 1 2 3 4 5 6 GROUNDING BAR CU 1/4" X 6" X 26" X LENGTH AS INDICATED ON DRAWINGS. WALL MOUNTING BRACKET (ON FLOOR) - 2 REQUIRED. INSULATORS - 2 REQUIRED. 5/8"-11 X 1 H.H.C.S. - 4 REQUIRED. 5/8" LOCKWASHER - 4 REQUIRED. ROUTE ALL GROUNDING CONDUCTORS INDEPENDENT OF CONDUITS.
