Electrical · E-MMK8S

AV Raceway Riser Diagram for Large Conference Room

Materials

Elements

Walls Stairs Ceilings Floors / Slabs Insulation

About this detail

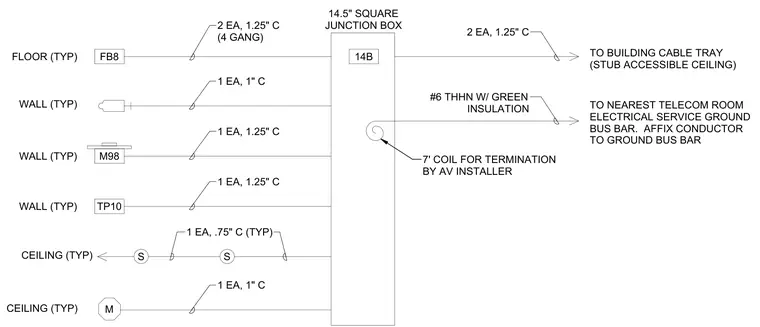

An audio-visual raceway riser diagram details the conduit routing and connections into a 14.5-inch square junction box. Multiple conduits ranging from 0.75 inches to 1.25 inches in diameter feed into the junction box from typical floor, wall, and ceiling locations. A 1.25-inch conduit routes out to the building cable tray stubbing into the accessible ceiling. A number 6 THHN conductor with green insulation includes a 7-foot coil for termination by the AV installer and extends to the nearest telecom room electrical service ground bus bar.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
