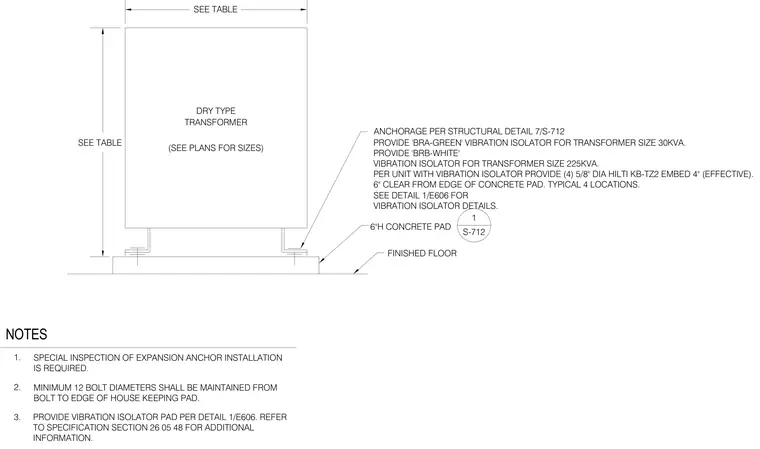

Seismic and vibration isolation anchorage for a dry-type transformer mounted on a six-inch concrete housekeeping pad above the finished floor. The transformer unit rests on vibration isolator pads, utilizing either a green or white model depending on the unit size. Four five-eighth-inch diameter Hilty KB-TZ2 expansion anchors with a four-inch effective embedment secure each unit at typical locations. A minimum edge distance of twelve bolt diameters is maintained from the anchor to the edge of the housekeeping pad. Special inspection is required for the expansion anchor installation.
TRANSFORMER DRY TYPE ANCHORAGE PER STRUCTURAL DETAIL 7/S-712 FINISHED FLOOR SEE TABLE NOTES 1. SPECIAL INSPECTION OF EXPANSION ANCHOR INSTALLATION IS REQUIRED. 2. 3. MINIMUM 12 BOLT DIAMETERS SHALL BE MAINTAINED FROM BOLT TO EDGE OF HOUSE KEEPING PAD. (SEE PLANS FOR SIZES) PROVIDE VIBRATION ISOLATOR PAD PER DETAIL 1/E606. REFER TO SPECIFICATION SECTION 26 05 48 FOR ADDITIONAL INFORMATION. 1 S-712 SEE TABLE 6"H CONCRETE PAD PROVIDE 'BRA-GREEN' VIBRATION ISOLATOR FOR TRANSFORMER SIZE 30KVA. PROVIDE 'BRB-WHITE' VIBRATION ISOLATOR FOR TRANSFORMER SIZE 225KVA. PER UNIT WITH VIBRATION ISOLATOR PROVIDE (4) 5/8" DIA HILTI KB-TZ2 EMBED 4" (EFFECTIVE). 6" CLEAR FROM EDGE OF CONCRETE PAD. TYPICAL 4 LOCATIONS. SEE DETAIL 1/E606 FOR VIBRATION ISOLATOR DETAILS.
