Electrical · E-MJNG9

Cake Pump 1 Maintenance Box One-Line Diagram

Elements

About this detail

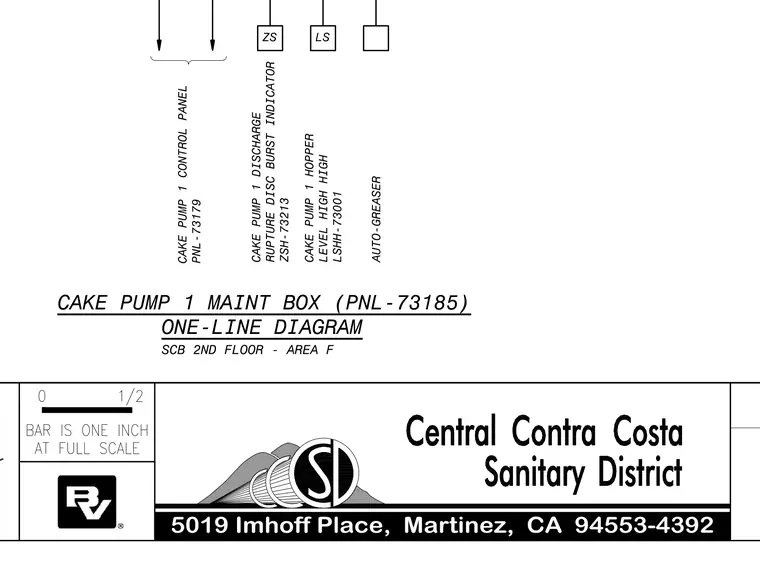

Electrical schematic providing the one-line diagram for Cake Pump 1 maintenance box, designated PNL-73185, located on the second floor in Area F. It includes connections for Cake Pump 1 control panel PNL-73179, Cake Pump 1 discharge rupture disc burst indicator ZSH-73213, Cake Pump 1 hopper level high high switch LSHH-73001, and an auto-greaser.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
