Generator Anchor Detail

Materials

Steel Stainless Steel

Elements

Floors / Slabs Anchors / Embeds

Connections

Bolted Connection

About this detail

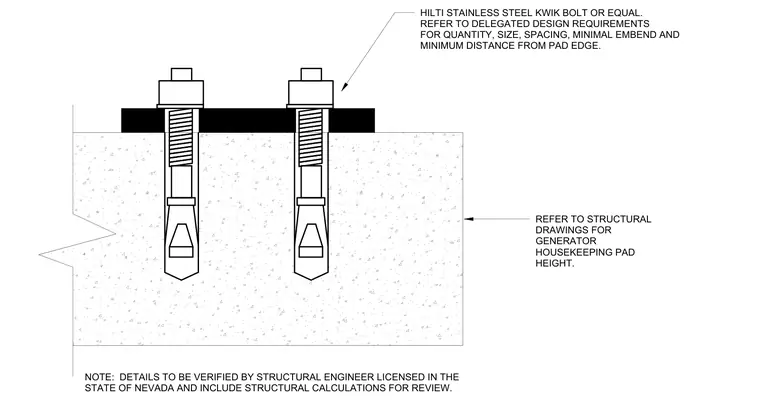

Stainless steel expansion anchors secure the generator base into a concrete housekeeping pad. Bolt quantity, size, spacing, minimum embedment, and edge distances follow delegated design requirements and structural calculations verified by a licensed engineer. Housekeeping pad height is coordinated with structural drawings.
