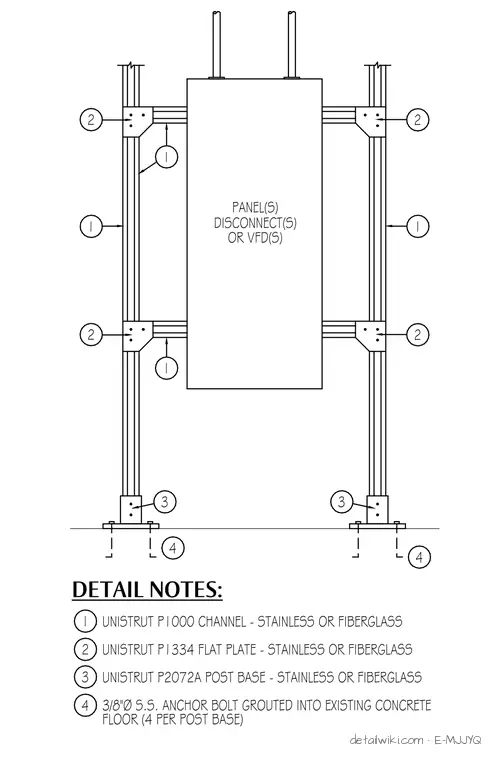

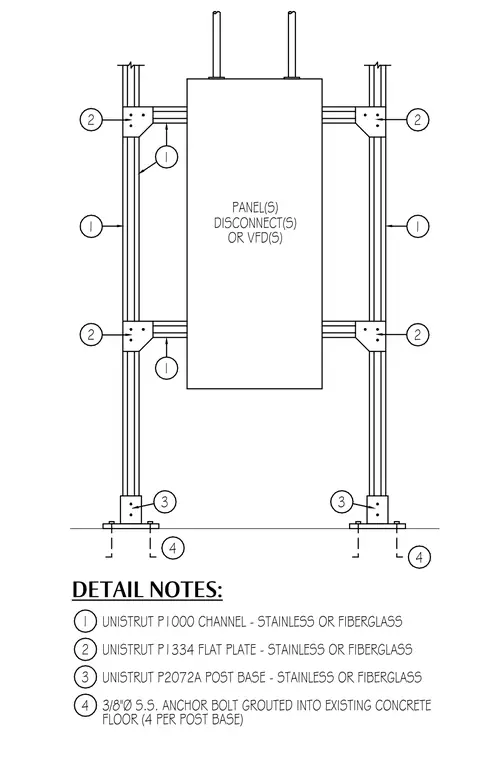

This assembly consists of a vertical support rack constructed from Unistrut P1000 stainless steel or fiberglass channels. The vertical members are secured to the existing concrete floor using Unistrut P2072A post bases, each anchored with four 3/8-inch diameter stainless steel anchor bolts that are grouted in place. Horizontal cross-members are connected to the vertical posts using Unistrut P1334 flat plates to provide a mounting surface for electrical panels, disconnects, or variable frequency drives.
