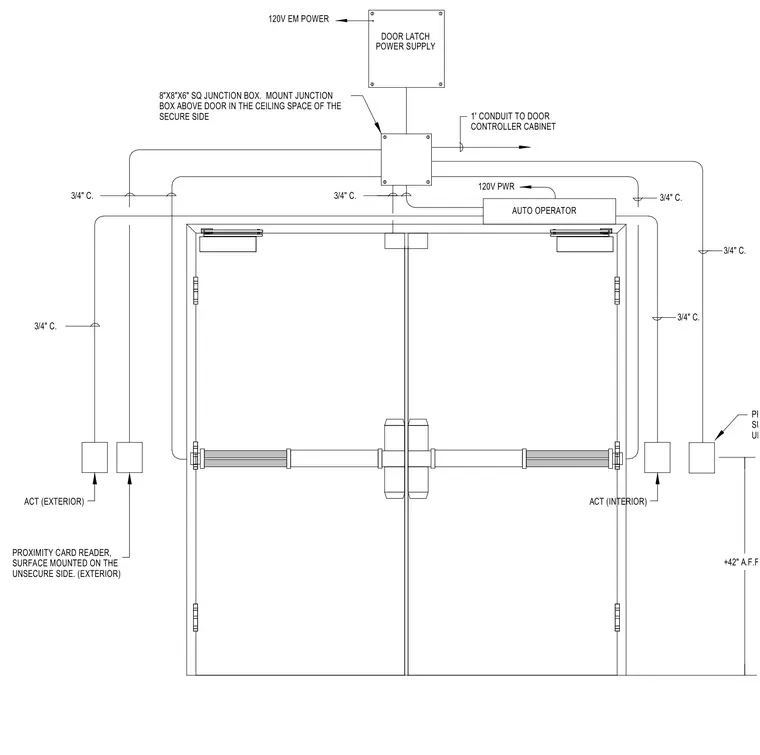

An eight-inch by eight-inch by six-inch square junction box is mounted above the door in the ceiling space of the secure side, connected to a door latch power supply receiving one-hundred-twenty-volt emergency power. Three-quarter-inch conduits route power and signal lines to exterior and interior activation devices, surface-mounted proximity card readers on the unsecure side positioned at forty-two inches above finished floor, and an automatic door operator. A one-inch conduit extends from the junction box to the door controller cabinet.
3/4" C. DOOR LATCH POWER SUPPLY 8"X8"X6" SQ JUNCTION BOX. MOUNT JUNCTION BOX ABOVE DOOR IN THE CEILING SPACE OF THE SECURE SIDE 1' CONDUIT TO DOOR CONTROLLER CABINET +42" A.F.F. 3/4" C. 3/4" C. 3/4" C. ACT (EXTERIOR) AUTO OPERATOR 3/4" C. 120V PWR ACT (INTERIOR) PROXIMITY CARD READER, SURFACE MOUNTED ON THE UNSECURE SIDE. (INTERIOR) PROXIMITY CARD READER, SURFACE MOUNTED ON THE UNSECURE SIDE. (EXTERIOR) 3/4" C. 120V EM POWER
