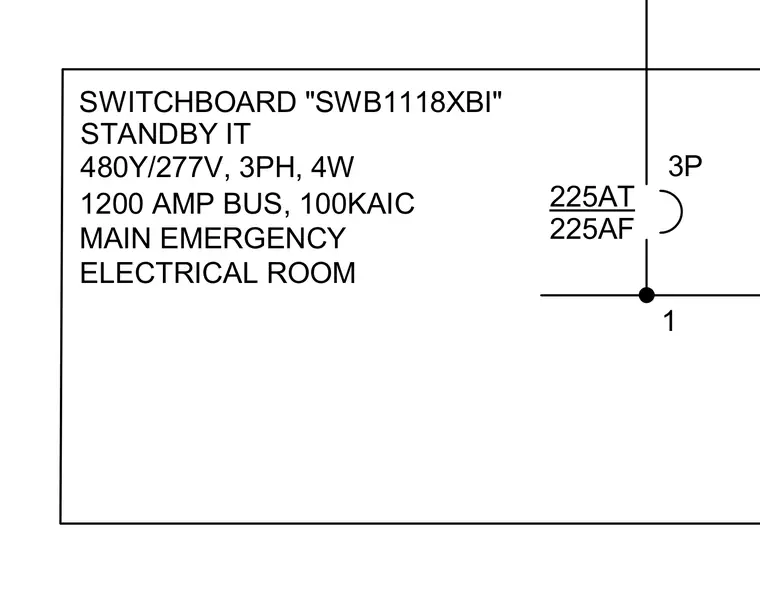

Switchboard "SWB1118XBI" is configured for a 480Y/277-volt, 3-phase, 4-wire system with a 1200-ampere bus and a 100kAIC short-circuit rating. The standby IT main switchboard is located in the emergency electrical room. Circuit 1 features a 3-pole 225-ampere trip rating and 225-ampere frame size breaker.
SWITCHBOARD "SWB1118XBI" 480Y/277V, 3PH, 4W 1200 AMP BUS, 100KAIC STANDBY IT MAIN EMERGENCY ELECTRICAL ROOM 225AT 225AF 3P 1
