A surface mounted light fixture attaches to a gypsum board ceiling with four number ten by two inch metal screws per fixture. Ceiling framing consists of cold-formed steel studs spaced twenty-four inches on center. Three number ten by three inch metal screws connect three-and-five-eighths-inch twenty-gauge steel stud backing at each end of the fixture. Two number ten by two-and-one-half-inch metal screws secure the framing at each end of the fixture.

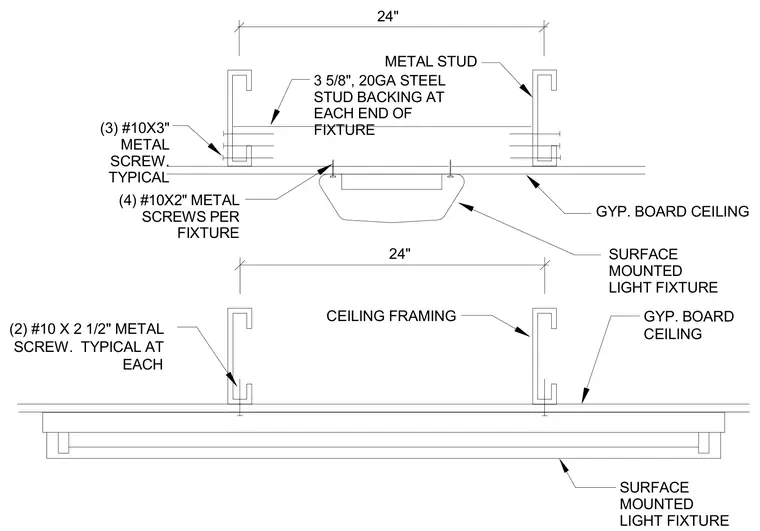

CEILING FRAMING 24" METAL STUD 24" GYP. BOARD CEILING (2) #10 X 2 1/2" METAL SCREW. TYPICAL AT EACH E ND O F F IX TUR E. (4) #10X2" METAL SCREWS PER FIXTURE (3) #10X3" METAL SCREW. TYPICAL SURFACE MOUNTED LIGHT FIXTURE 3 5/8", 20GA STEEL STUD BACKING AT EACH END OF FIXTURE SURFACE MOUNTED LIGHT FIXTURE GYP. BOARD CEILING
