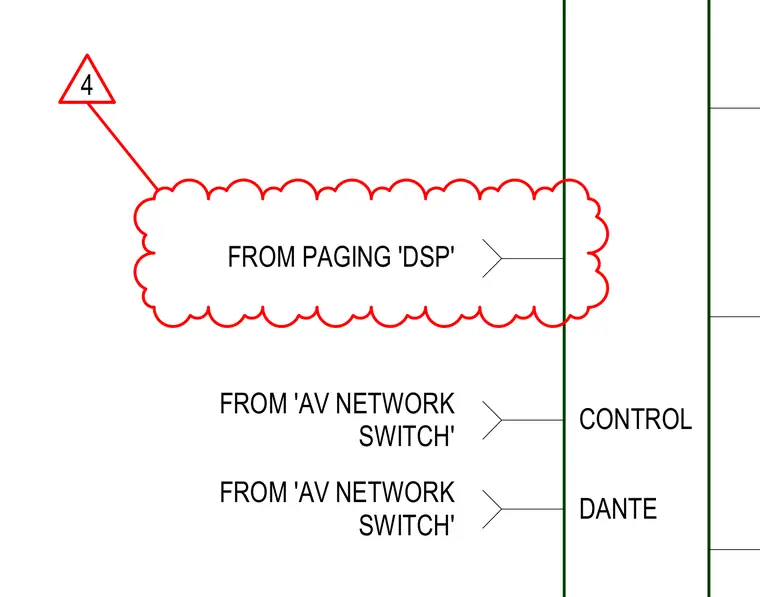

An audio-visual system signal flow diagram details input connections from a paging digital signal processor and AV network switches. Control signals connect from the AV network switch. Dante audio signals connect from a separate AV network switch.
FROM 'AV NETWORK SWITCH' FROM 'AV NETWORK SWITCH' DANTE CONTROL FROM PAGING 'DSP' 4
