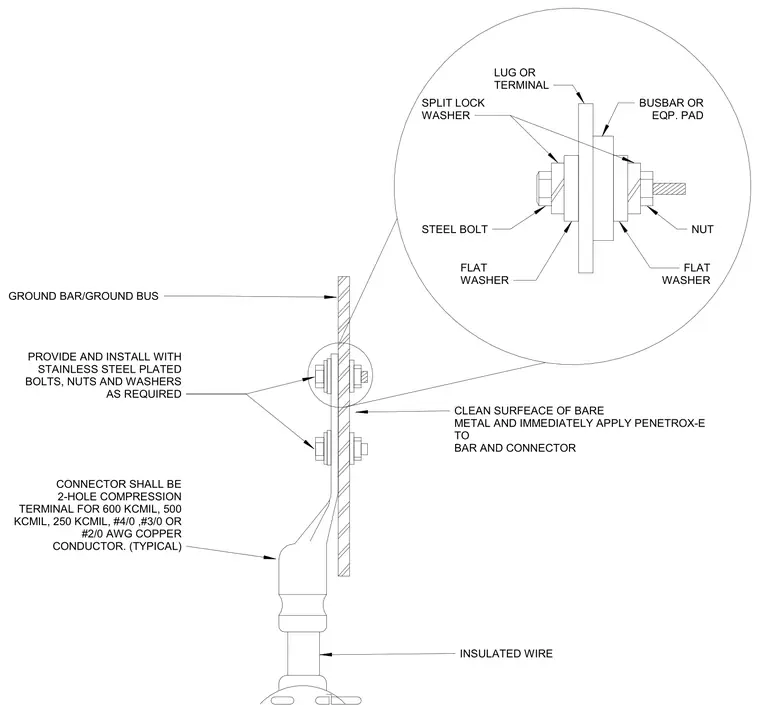

A two-hole compression terminal lug attaches to a ground bar or equipment pad. Bare metal surfaces are cleaned prior to the immediate application of Penetrox-E antioxidant compound on both the bar and connector interface. Stainless steel plated bolts, nuts, flat washers, and split lock washers secure the assembly. Insulated copper conductors ranging from six hundred KCMIL down to two-zero AWG connect via the terminal.
