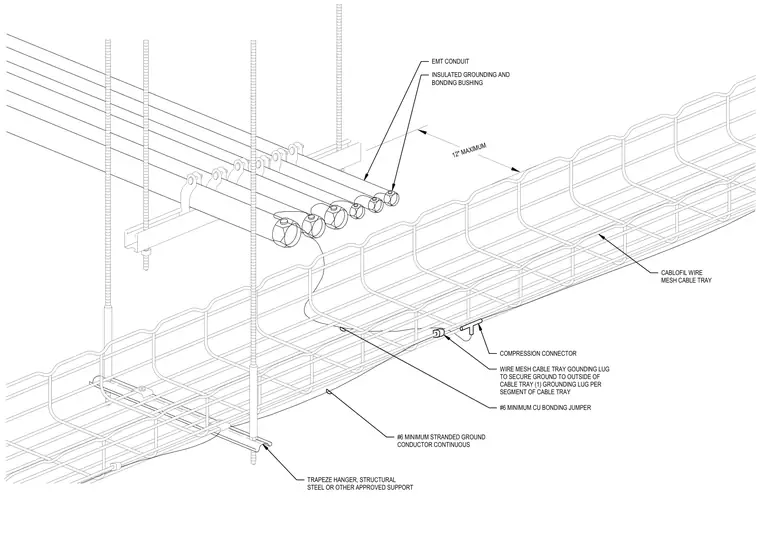

A wire mesh cable tray is suspended on a trapeze hanger, structural steel, or other approved support. A continuous stranded copper ground conductor runs alongside the support. A compression connector and wire mesh cable tray grounding lug secure the ground to the outside of the cable tray, with one grounding lug required per segment of cable tray. A minimum number six copper bonding jumper connects the tray to the electrical system. EMT conduits terminate nearby with insulated grounding and bonding bushings positioned a maximum of twelve inches from the termination.
EMT CONDUIT INSULATED GROUNDING AND BONDING BUSHING 12" MAXIMUM CABLOFIL WIRE MESH CABLE TRAY COMPRESSION CONNECTOR WIRE MESH CABLE TRAY GOUNDING LUG TO SECURE GROUND TO OUTSIDE OF CABLE TRAY (1) GROUNDING LUG PER SEGMENT OF CABLE TRAY #6 MINIMUM CU BONDING JUMPER #6 MINIMUM STRANDED GROUND CONDUCTOR CONTINUOUS TRAPEZE HANGER, STRUCTURAL STEEL OR OTHER APPROVED SUPPORT
