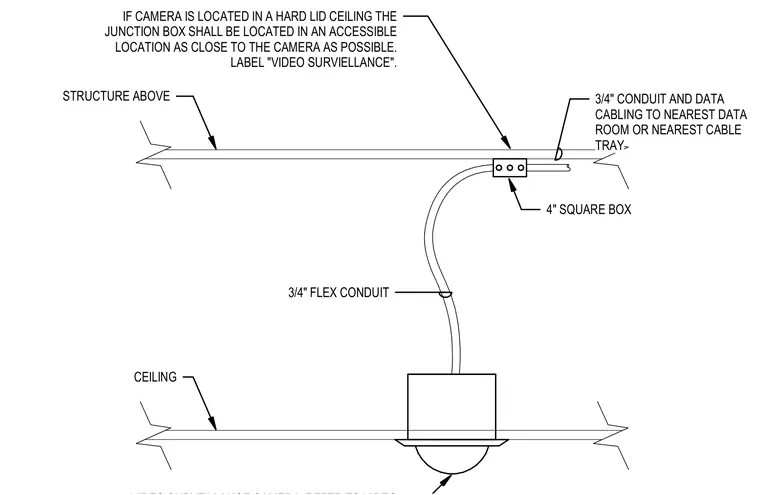

An interior security camera is recessed into the ceiling plane and connected via three-quarter-inch flexible conduit to a four-inch square junction box located at the structure above. Three-quarter-inch conduit and data cabling run from the junction box to the nearest data room or cable tray. If the camera is installed in a hard lid ceiling, the junction box must be placed in an accessible location as close to the camera as possible and labeled video surveillance.
CEILING 3/4" FLEX CONDUIT STRUCTURE ABOVE 4" SQUARE BOX 3/4" CONDUIT AND DATA CABLING TO NEAREST DATA ROOM OR NEAREST CABLE TRAY IF CAMERA IS LOCATED IN A HARD LID CEILING THE JUNCTION BOX SHALL BE LOCATED IN AN ACCESSIBLE LOCATION AS CLOSE TO THE CAMERA AS POSSIBLE. LABEL "VIDEO SURVIELLANCE".
