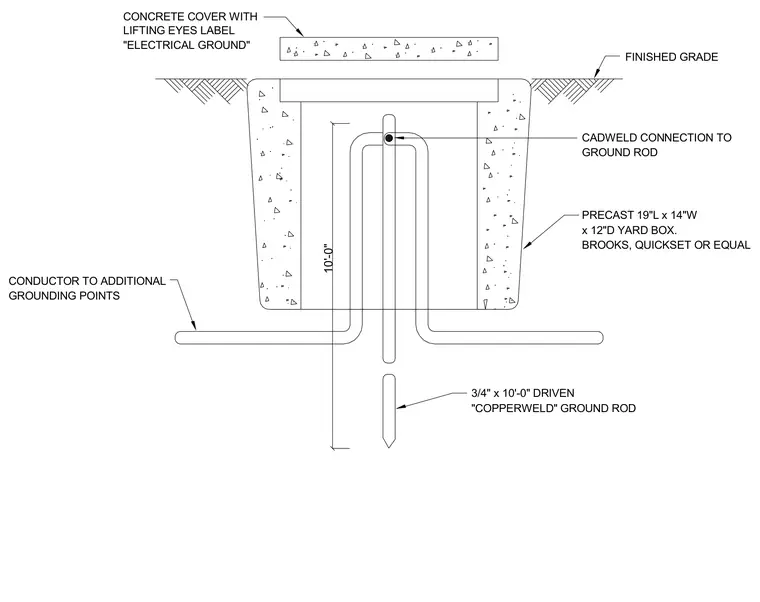

A three-quarter-inch by ten-foot driven Copperweld ground rod extends vertically through a precast nineteen-inch long by fourteen-inch wide by twelve-inch deep yard box, such as Brooks or Quickset or equal. A conductor connects to additional grounding points and joins the ground rod via an exothermic cadweld connection inside the enclosure. A precast concrete cover featuring lifting eyes and an "ELECTRICAL GROUND" label sits flush with the finished grade.
"ELECTRICAL GROUND" LIFTING EYES LABEL CONCRETE COVER WITH FINISHED GRADE CADWELD CONNECTION TO GROUND ROD x 12"D YARD BOX. BROOKS, QUICKSET OR EQUAL PRECAST 19"L x 14"W CONDUCTOR TO ADDITIONAL GROUNDING POINTS 3/4" x 10'-0" DRIVEN "COPPERWELD" GROUND ROD 10'-0"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
