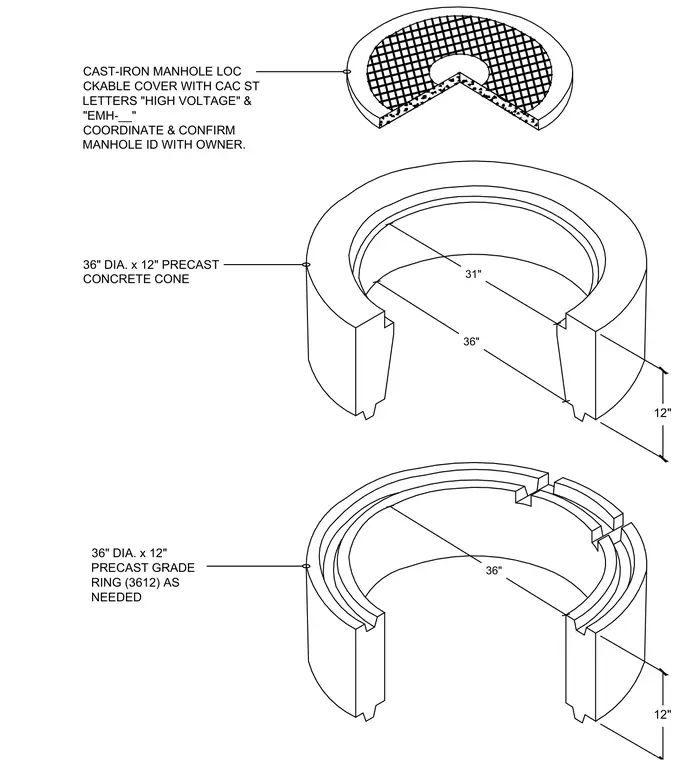

An electrical manhole access assembly consists of a thirty-six-inch diameter by twelve-inch precast concrete grade ring and a matching precast concrete cone section. A thirty-six-inch lockable cast-iron manhole cover sits atop the structure, featuring cast letters for high voltage and identification numbering coordinated with the owner.
36" 36" 31" 12" 12" CAST-IRON MANHOLE LOC CKABLE COVER WITH CAC ST LETTERS "HIGH VOLTAGE" & "EMH-__" COORDINATE & CONFIRM MANHOLE ID WITH OWNER. 36" DIA. x 12" PRECAST GRADE RING (3612) AS NEEDED 36" DIA. x 12" PRECAST CONCRETE CONE
