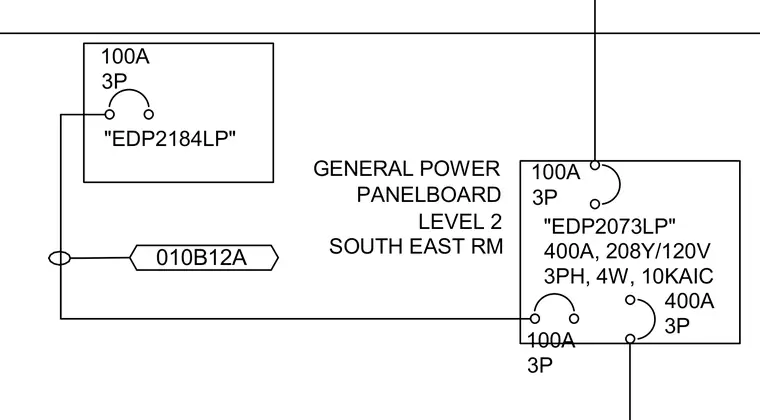

A 400A 208Y/120V 3-phase 4-wire 10KAIC general power panelboard designated EDP2073LP is located in the Level 2 south east room. The main panelboard includes a 400A 3-pole main breaker and feeds downstream equipment including a 100A 3-pole breaker connected to panelboard EDP2184LP via conduit circuit 010B12A.
GENERAL POWER PANELBOARD LEVEL 2 SOUTH EAST RM "EDP2073LP" 400A, 208Y/120V 3PH, 4W, 10KAIC 400A 3P 100A 3P 100A 3P "EDP2184LP" 100A 3P 010B12A
