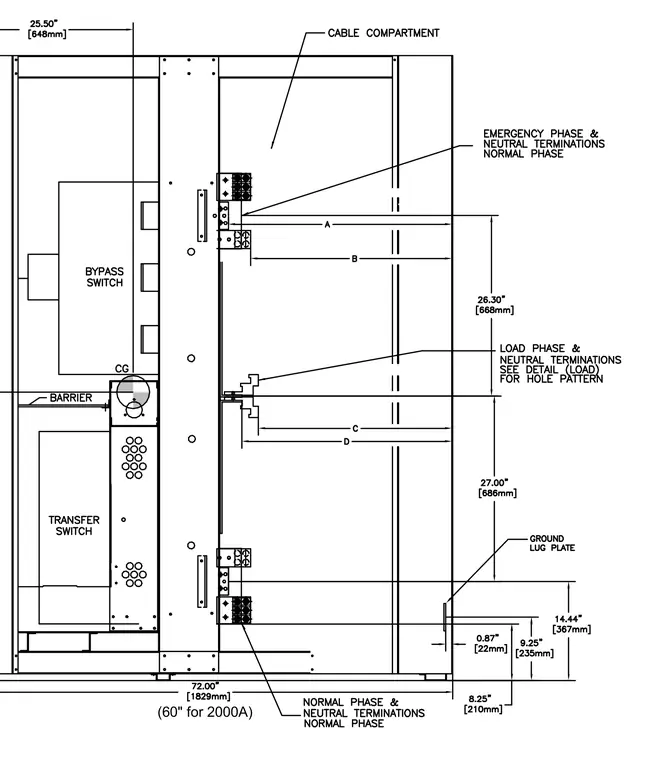

An electrical enclosure elevation shows the internal arrangement of a transfer switch and bypass switch alongside a dedicated cable compartment. Emergency phase and neutral terminations as well as normal phase and neutral terminations are positioned within the upper and lower sections. A barrier separates internal components, and a ground lug plate is located near the bottom. Dimensional callouts indicate clearance distances and termination heights for the unit.
