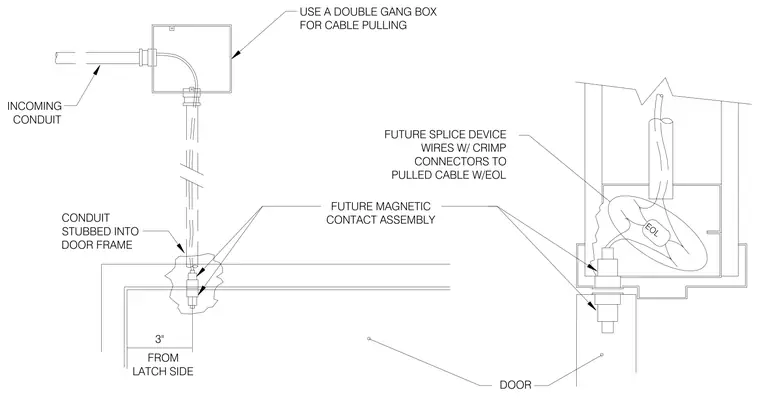

An incoming conduit routes to a double gang box utilized for cable pulling, from which a conduit stubs directly into the door frame. A future magnetic contact assembly is positioned three inches from the latch side of the door. Wires from the future splice device connect to the pulled cable with end-of-line resistors using crimp connectors.
DOOR EOL 3" USE A DOUBLE GANG BOX FOR CABLE PULLING CONDUIT STUBBED INTO DOOR FRAME INCOMING CONDUIT FUTURE MAGNETIC CONTACT ASSEMBLY FUTURE SPLICE DEVICE WIRES W/ CRIMP CONNECTORS TO PULLED CABLE W/EOL FROM LATCH SIDE
