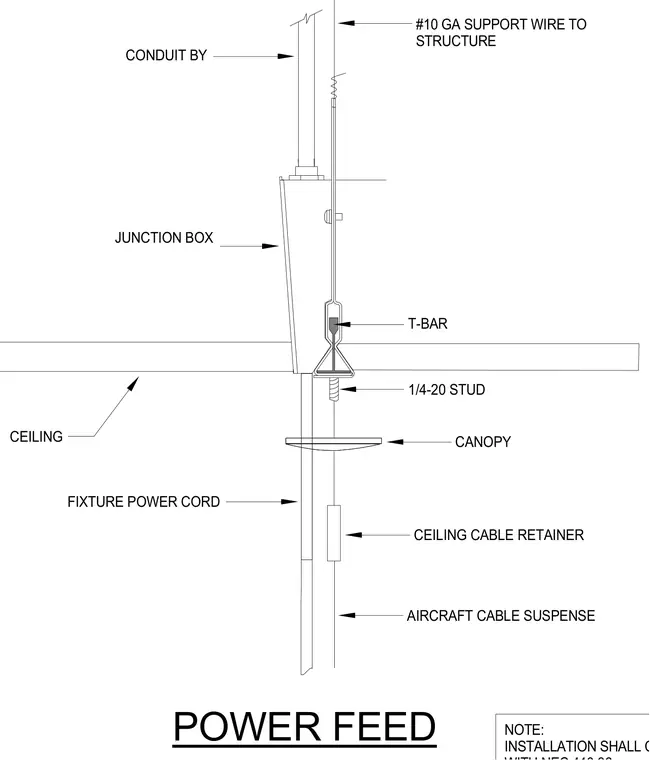

A junction box receives a power conduit from above and connects to a fixture power cord dropping through a ceiling canopy. The entire assembly is suspended from the overhead structure using number ten gauge support wire and an aircraft cable suspense anchored to a T-bar ceiling grid with a one-quarter-twenty stud and a ceiling cable retainer.
CONDUIT BY #10 GA SUPPORT WIRE TO STRUCTURE JUNCTION BOX CEILING FIXTURE POWER CORD T-BAR 1/4-20 STUD CANOPY CEILING CABLE RETAINER AIRCRAFT CABLE SUSPENSE POWER FEED NOTE: INSTALLATION SHALL COMPLY
