Electrical · E-M59J7

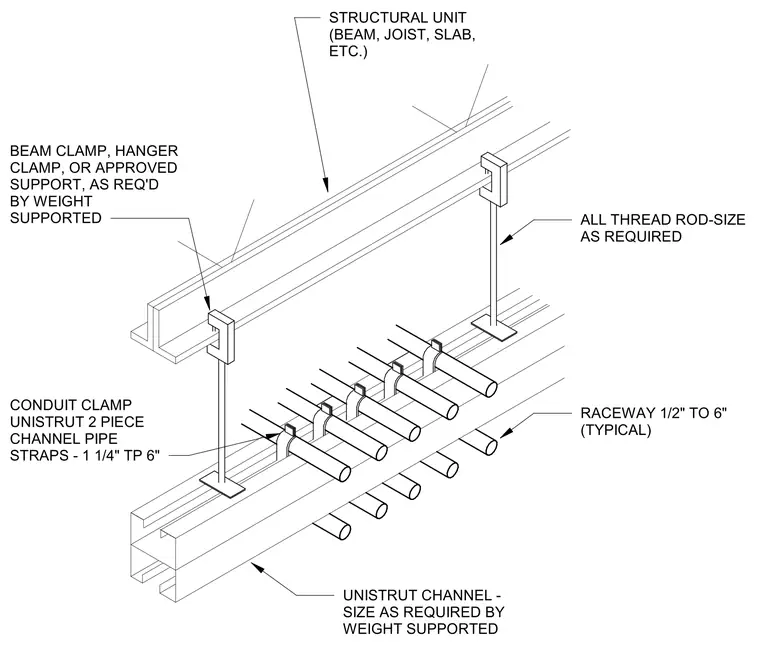

Typical Conduit Rack Detail

Materials

Elements

About this detail

Suspended electrical raceways are supported by a horizontal Unistrut channel hung from an overhead structural unit, such as a beam, joist, or slab. All-thread rods of a size required by the supported weight connect to the overhead structure via beam clamps, hanger clamps, or an approved support. Two-piece Unistrut channel pipe straps or conduit clamps secure raceways ranging from one-half inch to six inches in diameter to the Unistrut channel. The Unistrut channel size is determined by the weight of the supported raceways.
