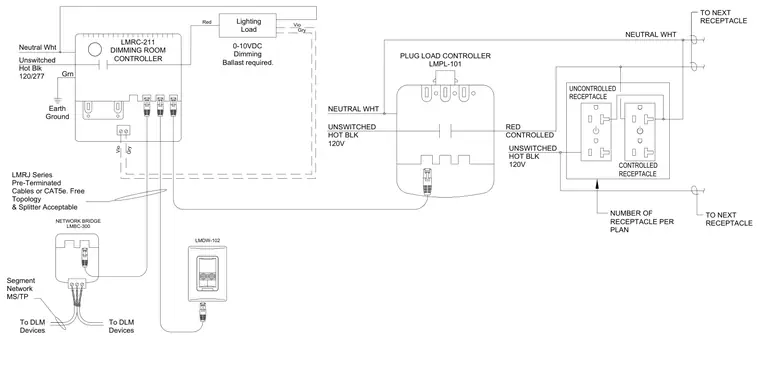

The lighting control system utilizes an LMRC-211 dimming room controller tied to an unswitched black 120/277V hot wire, a white neutral wire, and a green earth ground, with violet and gray leads providing 0-10VDC dimming to the lighting load. LMRJ series pre-terminated cables or CAT5e cables with free topology and splitters connect the room controller to an LMBC-300 network bridge for MS/TP segment network communication to other DLM devices. An LMDW-102 wall switch connects via data cable to the room controller. An LMPL-101 plug load controller feeds both controlled and uncontrolled duplex receptacles with 120V unswitched hot and neutral conductors, while passing through power to subsequent receptacles per plan.
Red Neutral Wht Vio Gry Vio Gry 0-10VDC Dimming Ballast required. Unswitched Hot Blk 120/277 Earth Ground Grn LMRJ Series Pre-Terminated Cables or CAT5e. Free Topology & Splitter Acceptable To DLM Devices Lighting Load Segment Network MS/TP To DLM Devices NEUTRAL WHT UNSWITCHED HOT BLK 120V RED CONTROLLED NEUTRAL WHT CONTROLLED RECEPTACLE UNCONTROLLED RECEPTACLE UNSWITCHED HOT BLK 120V TO NEXT RECEPTACLE TO NEXT RECEPTACLE NUMBER OF RECEPTACLE PER PLAN NETWORK BRIDGE LMBC-300 LMDW-102 PLUG LOAD CONTROLLER LMPL-101 LMRC-211 DIMMING ROOM CONTROLLER
