An access control unit enclosure is provided by the electrical contractor with 120-volt alternating current terminations and power supply. Low-voltage terminations are handled by the respective contractor using a two-pair 18-gauge cable and an 18-gauge six-conductor stranded shielded cable routed to the security control panel.

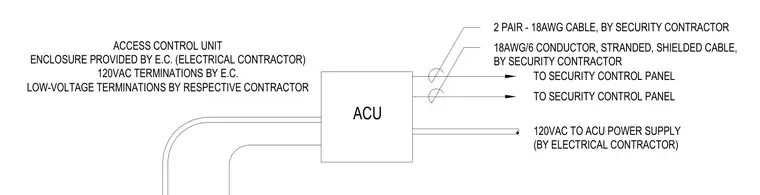

ACU ACCESS CONTROL UNIT ENCLOSURE PROVIDED BY E.C. (ELECTRICAL CONTRACTOR) 120VAC TERMINATIONS BY E.C. LOW-VOLTAGE TERMINATIONS BY RESPECTIVE CONTRACTOR 120VAC TO ACU POWER SUPPLY TO SECURITY CONTROL PANEL 2 PAIR - 18AWG CABLE, BY SECURITY CONTRACTOR (BY ELECTRICAL CONTRACTOR) 18AWG/6 CONDUCTOR, STRANDED, SHIELDED CABLE, TO SECURITY CONTROL PANEL BY SECURITY CONTRACTOR
