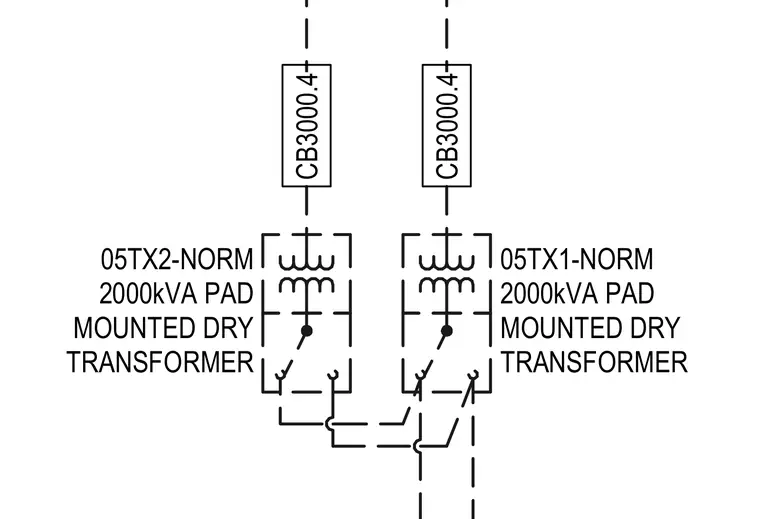

Two 2000kVA pad mounted dry transformers, designated 05TX1-NORM and 05TX2-NORM, connect upstream to circuit breakers designated CB3000.4. The schematic shows the winding configurations and circuit connections for each normal power transformer unit.
05TX2-NORM 2000kVA PAD MOUNTED DRY TRANSFORMER 05TX1-NORM 2000kVA PAD MOUNTED DRY TRANSFORMER CB3000.4 CB3000.4
