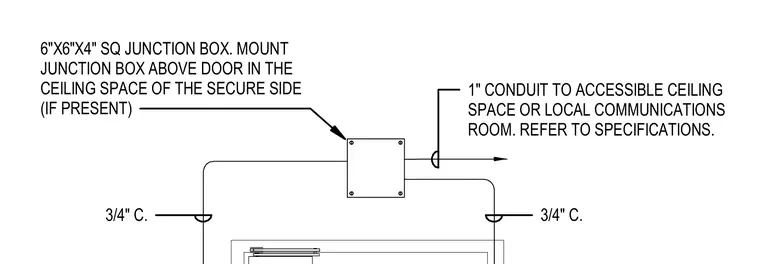

A six-inch by six-inch by four-inch square junction box is mounted above the door in the ceiling space of the secure side. Three-quarter-inch conduits connect to the box from below, while a one-inch conduit routes to the accessible ceiling space or local communications room per specifications.
3/4" C. 1" CONDUIT TO ACCESSIBLE CEILING SPACE OR LOCAL COMMUNICATIONS ROOM. REFER TO SPECIFICATIONS. 6"X6"X4" SQ JUNCTION BOX. MOUNT JUNCTION BOX ABOVE DOOR IN THE CEILING SPACE OF THE SECURE SIDE (IF PRESENT) 3/4" C.
