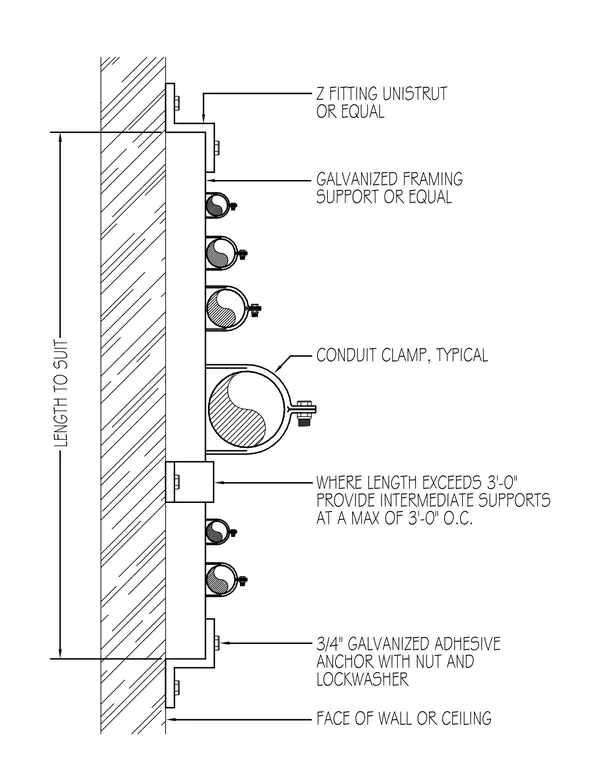

This assembly secures electrical conduits to a wall or ceiling surface using a galvanized framing support member attached via Z-fitting Unistrut or equal. The framing is anchored to the substrate with three-quarter-inch galvanized adhesive anchors, each equipped with a nut and lockwasher. Conduits are fastened to the framing support using typical conduit clamps. Where the total assembly length exceeds three feet, intermediate supports must be provided at a maximum spacing of three feet on center.
