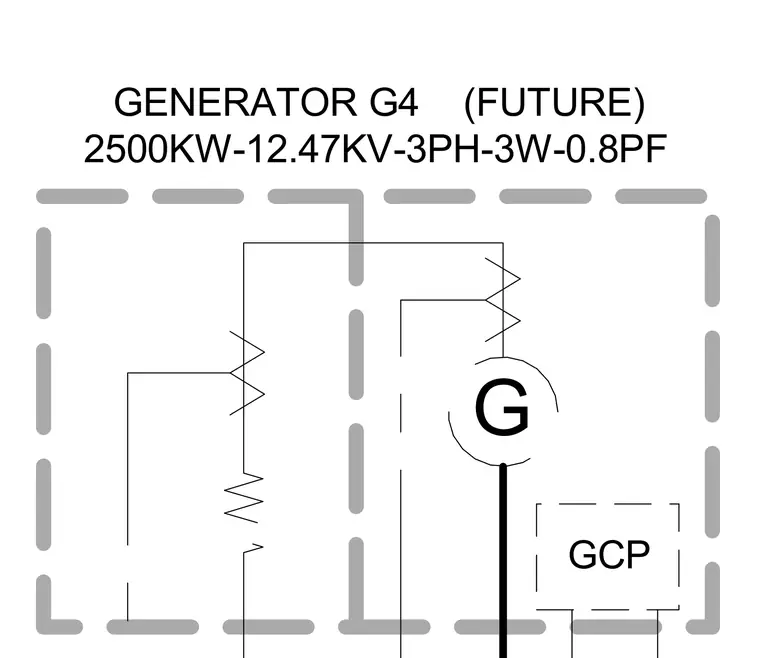

Generator G4 is specified as a future 2500kW unit operating at 12.47kV, 3-phase, 3-wire with a 0.8 power factor, including a generator control panel.
G GENERATOR G4 2500KW-12.47KV-3PH-3W-0.8PF (FUTURE) GCP G GENERATOR G4 2500KW-12.47KV-3PH-3W-0.8PF (FUTURE) GCP
