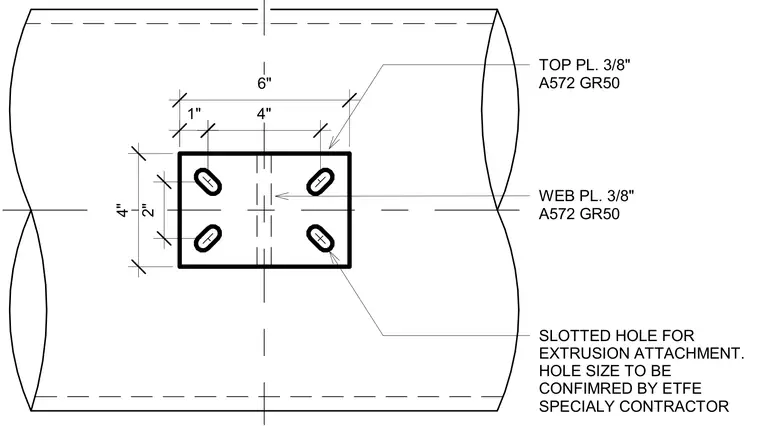

The assembly consists of a 3/8-inch thick ASTM A572 Grade 50 top plate and web plate welded to a structural member. Four slotted holes measuring two inches by four inches are provided for the ETFE extrusion attachment, with hole sizes to be confirmed by the specialty contractor. The plate dimensions measure six inches horizontally and four inches vertically with one-inch edge clearances.
4" 6" 4" 2" 1" SLOTTED HOLE FOR EXTRUSION ATTACHMENT. HOLE SIZE TO BE CONFIMRED BY ETFE SPECIALY CONTRACTOR TOP PL. 3/8" A572 GR50 WEB PL. 3/8" A572 GR50
