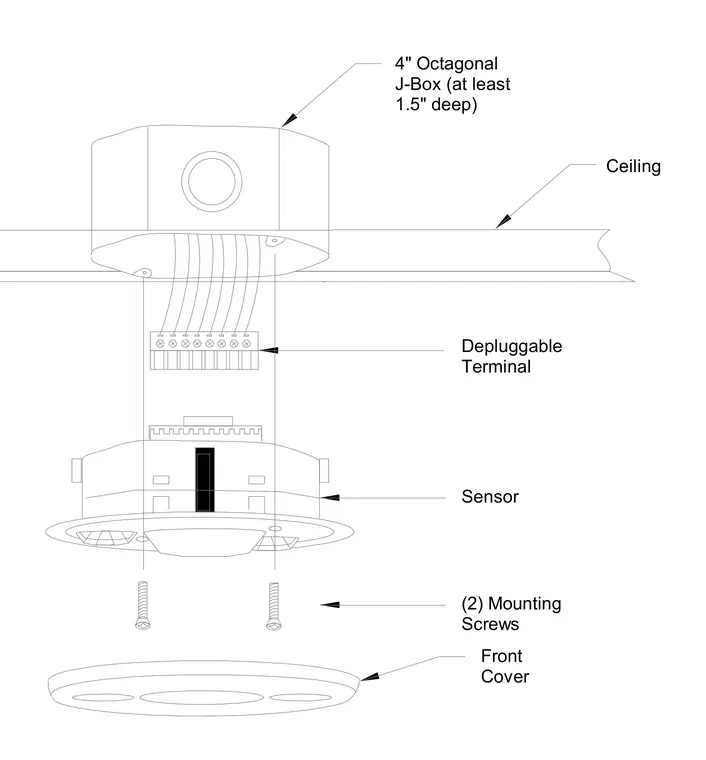

A four-inch octagonal junction box at least one and a half inches deep is recessed into the ceiling. A depluggable terminal connects wiring to the sensor mounted below. Two mounting screws secure the assembly, finished with a front cover.
(2) Mounting Screws Front Cover Depluggable Terminal Sensor Ceiling 4" Octagonal J-Box (at least 1.5" deep)
