Electrical · E-KT895

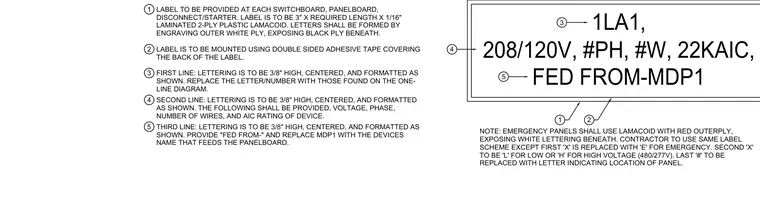

Typical Panelboard and Switchboard Label

About this detail

Each switchboard, panelboard, and motor starter or disconnect requires a three-inch by required-length by one-sixteenth-inch thick laminated two-ply plastic Lamacoid label with engraved outer white ply exposing black ply beneath. The label mounts using double-sided adhesive tape covering the entire back face. The first line of lettering is three-eighths of an inch high, centered, and indicates the panel designation per the one-line diagram. The second line is three-eighths of an inch high, centered, and displays the system voltage, phase, number of wires, and device AIC rating. The third line is three-eighths of an inch high, centered, and shows the feeding device name prefixed with FED FROM-. Emergency panels utilize a red outer ply with exposed white lettering and follow a modified naming scheme.
